Product
GEOMAX Cable / pipe locators EZiCAT i500
Description

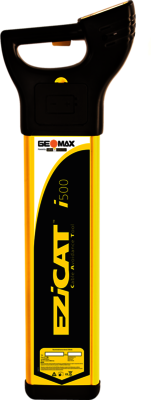

GEOMAX Cable & pipe locators EZiCAT i500
- EZiCAT i500, model no. 27500000, rugged instrument for easy and fast line location.
- The determination of the precise location of underground lines to protect employees and equipment during an excavation project has never been more important.
- The EZiCAT devices identify the location of underground lines by the receiving electromagnetic signals radiated from them.
- The intelligent EZiCAT software interprets these signals and provides the user both audible and visual information to the position and orientation of the hidden lines.
Applications
Applications
- Increasing the safety of excavation projects,
- In combination with signal transmitter secure positioning over long distances.
- Very simple operation.
Specifications
Specifications
Depth
Power to 3m, Radio to 2m
Locating
Active power lins
Frequency / Mode
Power 50 Hz or 60 Hz
Radio 15 kHz to 60 kHz
Generator Mod. 8 kHz + 33 kHz,
Transmitter 8 kHz and 33 kHz
Power
6 x AA
Capacity
40 hours
Protection class
IP54
Weight
2,700g
Dimension
760 x 85 x 250mm
Accessories
Accessories
Additional accessories for pipe and cable detection: GeoMax cable and pipe locatort accessories
