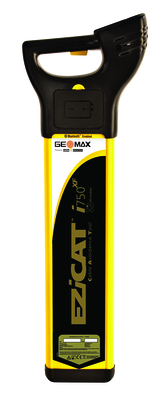

GEOMAX Cable / pipe locators EZiCAT i750xf
Description
Cable Avoidance and Tracing system EZi Systems
- EZiCAT i750xf, model no. 27518000, locator with depth display function*, data logging, with Bluetooth and GPS.
- The determination of the precise location of underground lines to protect employees and equipment during an excavation project has never been more important.
- The EZiCAT devices identify the location of underground lines by the receiving electromagnetic signals radiated from them.
- The intelligent EZiCAT software interprets these signals and provides the user both audible and visual information to the position and orientation of the hidden lines.
* For depth displaying the signal transmitter t100xf model no. 27526000 is necessary.
Applications
Applications
- Increasing the safety during earthworks.
- In combination with signal transmitter safe location over long distances.
- Very simple operation.
Specifications
Specifications
Depth
Power to 3m, Radio to 2m
Depth estimation
10% of depth in line or sonde (0.3 to 3m depth range)
GPS
± 2,5m
Locating
Active power lines
Frequency / Mode
Power 50 Hz or 60 Hz
Radio 15 kHz to 60 kHz
Transmitter 8 kHz and 33 kHz
Auto Modus = Power + Funk Modus
Further Modi
512 / 640kHz
Power / Capacity
6 x AA / 40 hours
Protection class
IP54
Compatibility
CSV file compatibility program
Memory size
32 MB
Capacity
80 hours data recording
Weight
2,700g
Dimension
760 x 85 x 250mm
Accessories
Accessories
Additional accessories for pipe and cable detection: GeoMax cable and pipe locatort accessories
