Locating System Ultra Advanced
Description
The Ultra Advanced system is a premium class location system. Thanks to its special AIM system, it is particularly suitable in areas with a high density of cables and pipes in order to be able to follow the course of individual supply lines precisely.

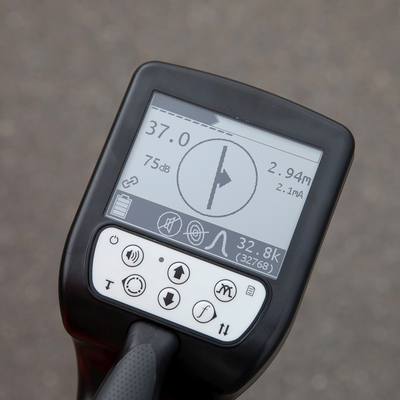

In the event of obstacles, the system can also determine lines indirectly through offset measurements. The system shows the direction to a tracked supply line via an integrated compass.
- Configuration for site-specific applications
- Choice of 100 frequencies
- Choice of the optimal antenna for your location
- Detection of the signal direction
- Offset measurement

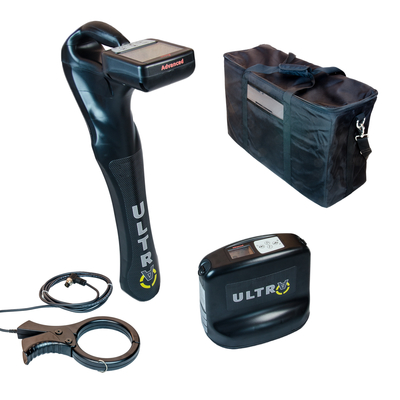

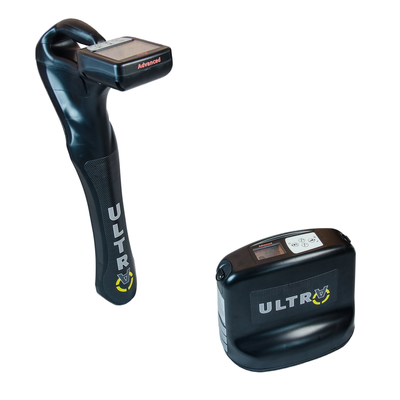

Scope of delivery: Locator Ultra, Transmitter Ultra 12 W, signal clamp 125mm, bag,
batteries.
Applications
- Display of the direction of the tracked utility line using Compass
- Direction detection - detection of the target supply line at several parallel supply lines
- Measurement of ambient signal interference (AIM)
- Remote controlled generator
Specifications
Specifications
Dimensions locator / weight
691 x 325 x 122 mm / 2,2 kg
Frequency range locator
50 Hz bis 200 Hz
max. depth
6 m
Depth accuracy
5 %
Operating temperature
-20 ° bis + 50° C
Battery locator
2 mono cells
Battery life Locator
up to 70 h
Dimensions transmitter / weight
254 x 305 x 91 mm / 3,4 kg
Protection class locator / transmitter
IP65
Battery transmitter
10 mono cells
Battery life transmitter
100 h
Frequencies
up to 22 custom frequencies from 256 Hz-10 kHz
