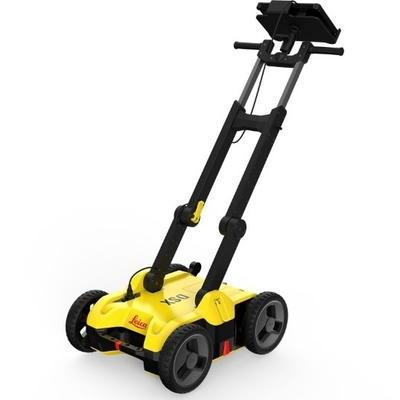

Leica DSX utility detection
Description
DSX – Locating supply lines in underground
- Knowledge of the exact location of supply. Underground lines are during earthworks essential.
- With the DSX ground penetrating radar you cover supply lines clearly and effortlessly, because the DSX System is optimized for the detection of lines.

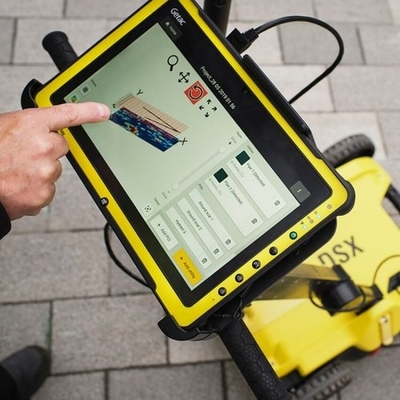

- The intuitive software DXplore takes over for you the interpretation of the data.
- The system optionally accepts position data of GeoMax GNSS antennas.
- Decrease line damage, increase the safety for your personnel during earthworks, reduce search shafts.
Applications
Application benefits
- Reduces line damage.
- Any pipe material.
- Increases the safety of your staff during earthworks.
- Reduces search shafts.
- Assists in interpretation of the measurement data.
- Environmentally friendly, no CO2 pollution, no noise.
Specifications
Specifications
Detection depth
up to 2 m
Acquisition speed
up to 7 km/h
Scan interval
0,50 m
Protection class
IP 65
Weight (without Akku)
23 kg
Operating time
up to 8 hours
Operating temperature
-10°C bis + 40°C
Display
11,6“
Operating system
Windows 10 Pro
Location from wheel encoders
yes
Google Maps and current location support
yes
Local coordinate system support
only 25011000 (Surveyor-Kit)
Geoid corrections
only 25011000 (Surveyor-Kit)
GNSS antenna and TPS support
only 25011000 (Surveyor-Kit)
Accuracy check
only 25011000 (Surveyor-Kit)
Accessories
Scope of delivery
Leica DSX Starter-Kit, model no. 25010000:
DSX Hardware, CT1000 Controller model no. 25012000, DXplore Build with permanent license.
Leica DSX Surveyor-Kit, model no. 25011000:
DSX Hardware, CT1000 Controller, model no. 25012000, DXplore Build and Surveyor with permanent license, PS1000 Pole-Kit model no. 25013000.
