Product

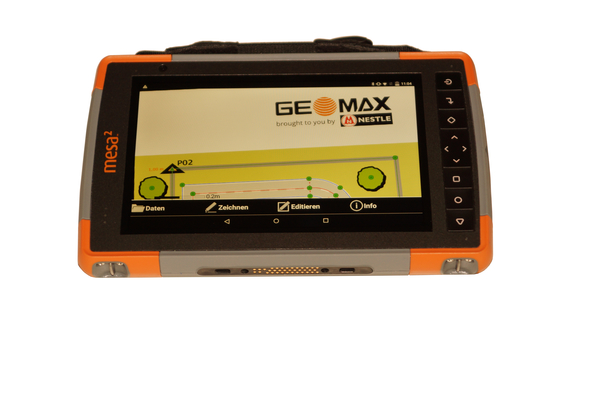

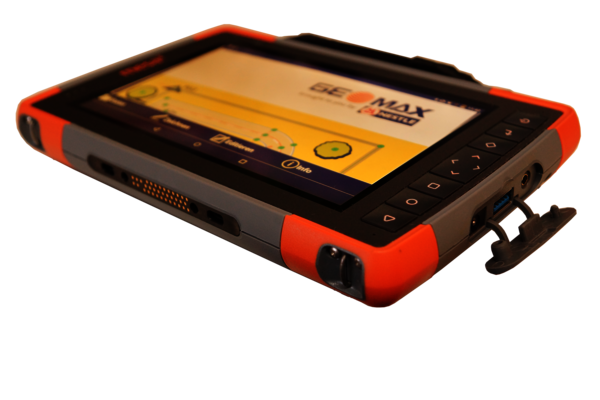

Feldrechner Juniper Mesa 2
Description
Robustes Tablet – Android
- The Mesa 2 is a rugged 7 “tablet designed for field work in the most adverse conditions.
- Ideal for communication with all GeoMax total stations and GNSS antennas.
- With integrated GNSS receiver also suitable for simple GIS applications.
-
Available in 2 versions:
– 26021000 Mesa 2 Android GEO EU / CE field controller, integrated GNSS receiver, with car charging cable
– 26022000 like model 26021000 additionally with integrated 4G LTE modem
Applications
Applications
- Operation with pen, four-way navpad, fingers - even with gloves
- Excellent readability even in sunlight
- Robust due to protection class IP68
- Replaceable Li-ion battery
Specifications
Specifications
Operating System
Android 5.1, multilingual
Power
Li-Ion, replaceable, Worktime 8-10 hours
Temperature
Operation -20°C to +50°C
Storage -30°C to +70°C
Display
7“ (178mm), High-visibility backlit LCD for best-in-class sunlight view-ability
Input
Touch (stylus, finger, gloves), 3 configurable buttons, four-way navpad
Ports
Long-distance Bluetooth®, Wi-Fi®, USB, Audio, 12 VDC, Docking, Microphone, MicroSD, insert for stylus
Camera
Back 8 MP, Front 2 MP
GNSS Sensor
72 canals (GPS, Glonass, Galileo, Beidou), typical accuracy 2-5m
Protection class
IP68, waterproof and dustproof, fall-resistant from 1.5m to concrete
Dimensions
137x215x35mm
Weight
900g
Special features
With car charging cable
Accessories
Accessories
- Pole holder, model no. 14974000,

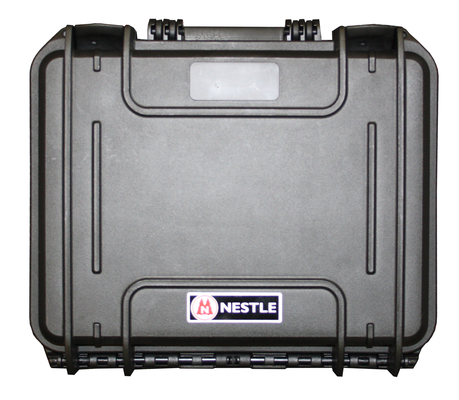

- Universal case NT300 black, model no. 26020000
