Product

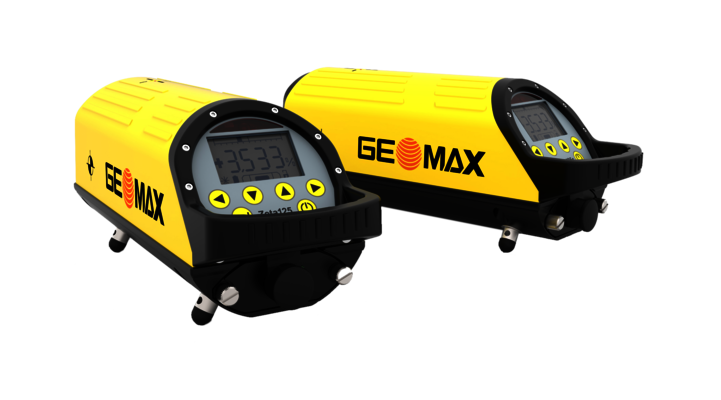

GEOMAX Pipe lasers Zeta 125 / 125S
Description
Pipe lasers
- Ideal for the control and implementation of gradients during laying of sewage and drainage systems.
- The Zeta 125 fits in tight bends and narrow manholes. Its slim build makes it suitable for pipes with 125mm (5”) diameter and the Zeta feet ensure users continue working in most any site situation.
- Wide range of applications: inclination of -10% to +40%, Range >300m.
- With the alignment function, only Zeta 125S, you direct the laser by remote control on the direction of target, even outside the trench.
- Zeta 125S has additional vertical plane of rotation and alignment, optionally with automatic target.
- GeoMax Zeta 125, laser class 2 with universal target, model no. 28004000.
- GeoMax Zeta 125, laser class 2 with standard target, model no. 28005000.
- GeoMax Zeta 125S, laser class 3R with universal target, model no. 28001000.
- GeoMax Zeta 125S, laser class 3R with standard target, model no. 28003000.
Applications
Applications
- Extremely robust construction (IP68) for rough conditions.
- Maximal range.
- Compact size, from 125 (5“) pipe used.

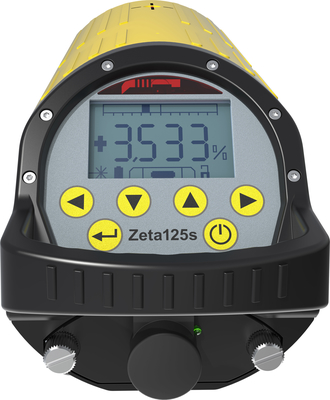

- Easy to read, backlit display.
Specifications
Specifications
Tolerance
±5mm to 100m
Range
>300m
Laser diode
635nm visible (red), class 2 (Zeta 125) / class 3R (Zeta 125S)
Tilt range
+40% to -10%
Self-levelling range
+45% to -15%
Temperature range
-20°C to +50°C
Power supply
Lithium-Ion (Li-Ion-Pack) rechargeable
Operating time
40 hours
Dimensions
305 x 105 x 113mm
Weight
2,070g
Protection class
IP68
Tripod mount
5/8"
Accessories

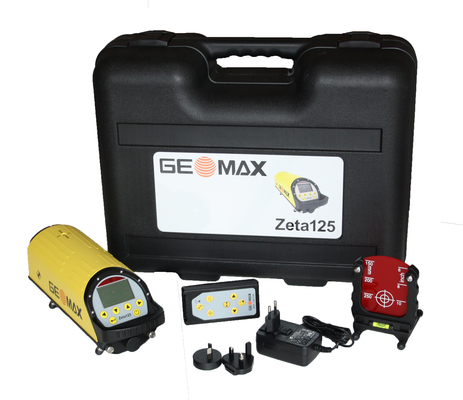

Scope of delivery
- Instrument
- Case
- Charger LDG125
- Batteries
- Universal target
- Remote control
- 4 x leg for diameter 150mm
- Manual
