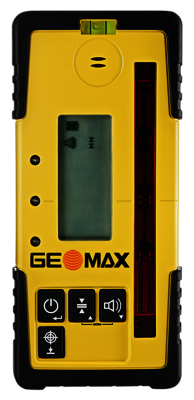

GEOMAX Laser receiver ZRD105
Description
Laser receiver of GeoMax Zone line
- The laser receiver ZRD105 is suitable for all rotating lasers of the serie GeoMax Zone.
- ZRD105 digital laser receiver. Best digital technology in a rugged housing.
- Double-sided display and numeric display in five levels of precision.
- The digital display shows the laser distance in real numerical values.
Applications
Applications
- Protection class IP67 suitable for the hardest missions.
- Operating temperature -20°C to +50°C.
- Suitable for all GeoMax Zone rotating laser.
- Acustic and graphic display.
- Suitable for the working range of Ø900m.
Specifications
Specifications
Laser receptor
105mm
Digital readout
90mm
Bandwidths
±0.5mm, ±1mm, ±2mm, ±3mm, ±5mm
Range
Ø900m
Signal
Display and signal
Protection class
IP67
Working temperature
-20°C to +50°C
Weight
320g
Dimension
175 x 80 x 30mm
Accessories
Accessories
Laser rod with slide adaptor, model no. 18702000.
