Product

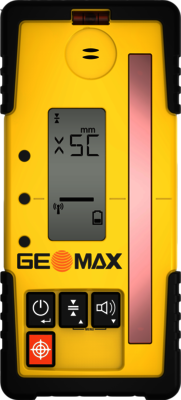

GEOMAX Laser receiver ZRD105B
Description
Accessory Laser
- Combines the advantages of the ZRD105 with additional features, available with the Zone 60DG.
- The numerical display shows the laser distance in real numbers.
Additional features:
- Beam catching – Find and align the laser plane by one key press for slope or vertical alignment application (auto Grade Matching).
- Beam lock – the laser plane is catched and monitored in real-time. (Grade Matching and Monitoring)

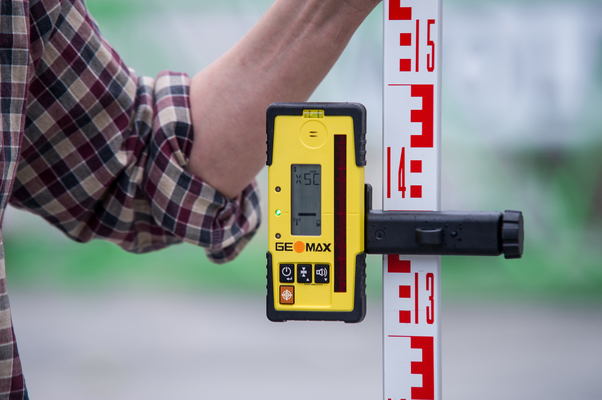

Applications
Applications
- IP67 shock and water resistant
- Working temperature -20 ° C to + 50 ° C
- catch and align the laser plane in combination with Zone 60DG
Specifications
Specifications
Laser receptor
105 mm
Digital readout
90 mm
Bandwidths
±0,5mm, ±1mm, ±2mm, ±3mm, ±5mm
Range / Range RF
Ø 900m / Ø 100m for Beam Catching+Beam Lock
Signal
Display und Ton
Protection class
IP67
Working temperature
-20°C to +50°C
Weight
320g
Dimension
175 x 80 x 30mm
Include
Beam Catching and Beam Lock technology
Accessories
Accessories
Laser rod with slide adaptor, model no. 18702000.
