Product
GeoMax levels ZAL100 series
Description
Levels for the construction industry
- Levels of series ZAL100 are suitable for easy levelling at all sites in the interior and exterior.
- Three different magnifications.
- With reference circle for horizontal angle measurements.
- With stadia lines for optical distance measurement and simple terrain surveys.
- Stakeout heights.
- Automatic compensation by air-damped compensator.
- ZAL124 with 24x magnification, model no. 27001000

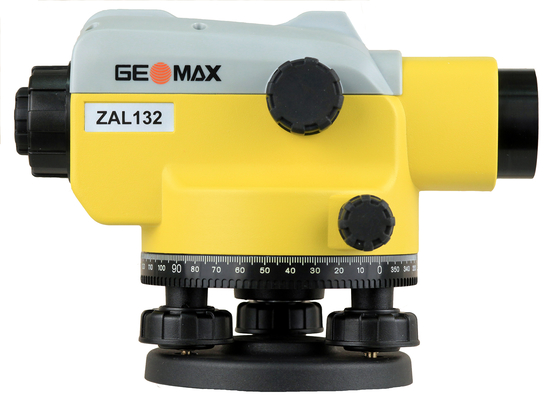

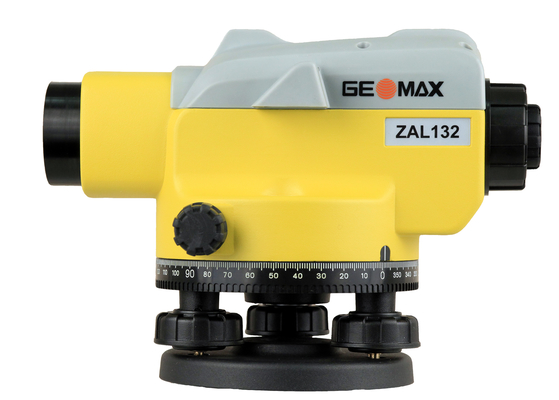

- ZAL132 with 32x magnification, model no. 27002000

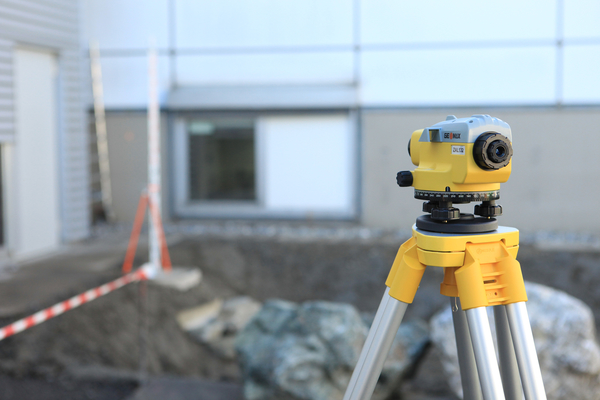

Applications
Applications
- Ergonomic two-side endless fine drive.
- Robust and accurate for your daily tasks in the construction sector.
- Sealed housing according to protection class IP54.
Specifications
Specifications
Magnification
ZAL124: 24x / ZAL132: 32x
Fild of view
< 2.1m at 100m
Compensator
air-damped
Circle Graduation / Interval
360° / 1°
Accuracy / 1km double run
ZAL124: 2mm / ZAL132: 2mm
Working range
±15‘
Multiplicat. / Additive const.
100 / 0
Stadia lines
yes
Shortest target distance
< 1m
Circular vial
8‘ / 2mm
Weight
1,500g
Protection
IP54
Working Temp.
-20°C to +40°C
Accessories
Level sets
Each ZAL100 levels are available with an aluminum tripod (light version model no. 13100021) and a 5m telescopic leveling staff (including bag and circular vial, model no. 18203000).
- GEOMAX ZAL124-set: model no. 27013000
- GEOMAX ZAL132-set: model no. 27014000
