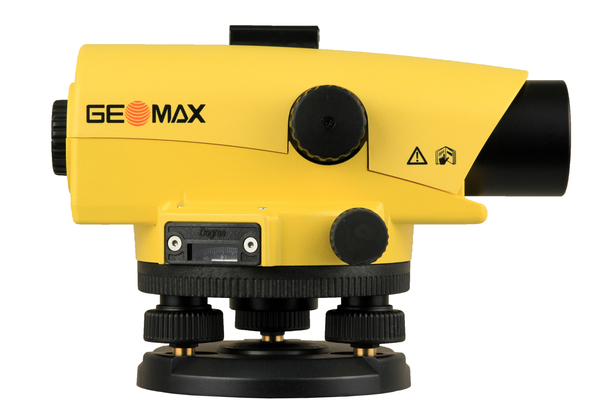

GeoMax levels ZAL300 series
Description
Automatic levels for construction and engineering
- From the daily works to high accuracy requirements – the ZAL300 series is your first choice for durability, comfort and accuracy.
- Four different magnifications. (20x, 24x and 30x).
- The best-in-class optics in ZAL300 and MAGNEX™ compensator are housed in a sealed and shockproof housing. Thus, the instruments are insensitive to shocks and all weather conditions.
- The circle has a 360° and 400gon reading for horizontal angle measurements.
- With stadia lines for optical distance measurement and simple terrain surveys.
- ZAL324 with 24x magnification, model no. 27007000
- ZAL330 with 30x magnification, model no. 27009000

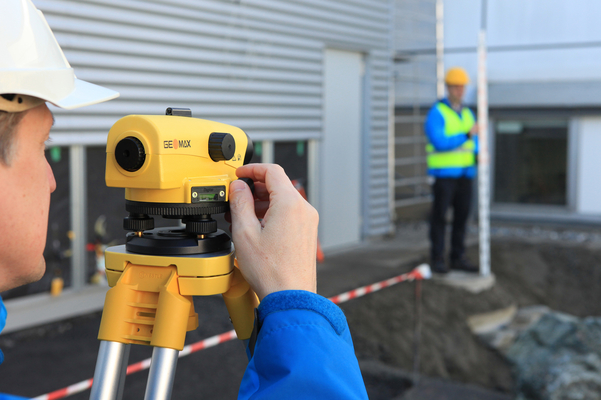

Applications
Applications
- Ergonomic two-sided endless fine drive.
- Robust and accurate for your daily tasks in construction and engineering.
- Protection class IP57 with gas-filled telescope.
Specifications
Specifications
Magnification
ZAL324: 24 x / ZAL330: 30 x
Objective aperture
ZAL324: 30mm / ZAL330: 40mm
Compensator
Automatic, magnetic-damped, pat. magneX™
Circle Graduation / Interval
360° and 400gon / 1°, 1gon
Accuracy /1km double run
ZAL324: 2.0mm / ZAL330: 1.2mm
Working range
± 15‘
Multiplicat. / Additive const.
100 / 0
Stadia lines
Yes
Shortest target distance
ZAL324: 0.6m / 330: 0.8m
Circular vial
10‘ / 2 mm
Weight
1,600g - 1,700g
Protection
IP57
Working Temp.
- 20°C bis + 50°C

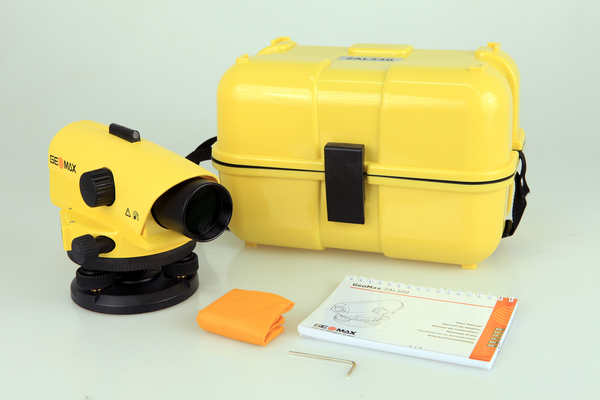

Accessories
Level sets
Each ZAL300 levels are available with an aluminum tripod (light version model no. 13100021) and a 5m telescopic leveling staff (including bag and circular vial, model no. 18203000).
- GEOMAX ZAL324-set: model no. 27019000
- GEOMAX ZAL330-set: model no. 27021000
