Product

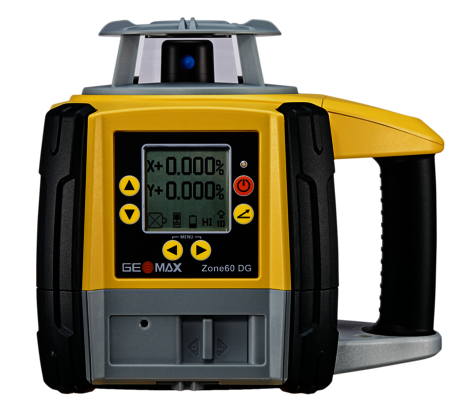

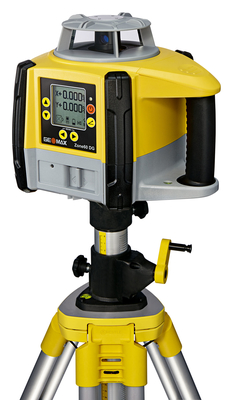

GEOMAX rotating lasers Zone 60DG
Description
Fully autom. 2-axis grade laser horizontally and vertically
- The rotating laser of GeoMax Zone series are robust (IP67), versatile (900 meters workspace) and offer exceptional value for money.
- Fully automatic 2-axis grade laser (DG = Dual Grade) with digital grade up to 15% for every construction site.
- With the remote control ZRC60 you have full control of up to 300m.
- Through the display settings of inclinations in two axes, horizontal and vertical, are very simple.

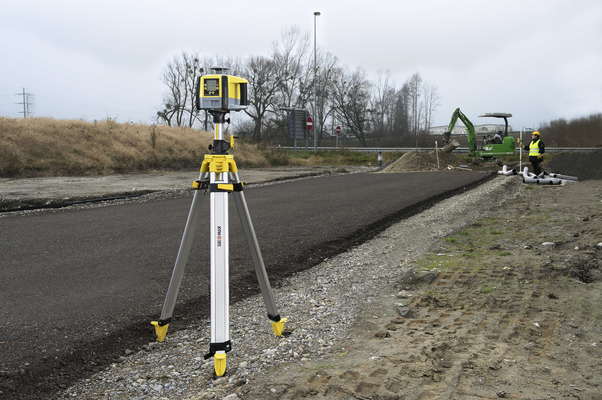

- Best application: exterior.
- With the ZRD105B laser receiver the beam can be catched and monitored automatically.
Applications
Applications
- Fast auto-levelling.
- Laser class 1.
- Can be grade in 2 axes up to ±15%.
- Digital Display for inclination on the remote control.
Beam catching: automatic laser beam catching (with receiver ZRD105B)
Beam lock: automatic laser beam monitoring (with receiver ZRD105B)
Specifications
Specifications
Tolerance
± 0.5mm at 10m
Working range with receiver
Ø 900 m
Laser diode
635nm visible (red), class 1
Self-levelling range
± 6°
Temperature range
-20°C to +50°C
Power supply
4 alkaline D-cell (D), Lithium-Ion (Li-Ion Pack rechargeable)
Grade
15% in one axis with up to 3% of the cross axis. Up to 10% in both axis simultaneously
Operating time
> 40 hours
Dimensions
240 x 215 x 215mm
Weight
3,400g
Protection class
IP67
Tilt warning
ja
Accessories

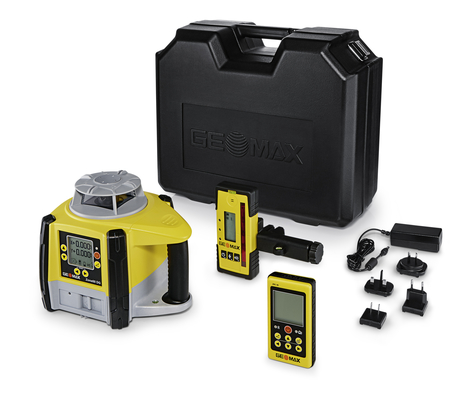

Scope of delivery
GeoMax Zone 60DG laser rotator Carrying case, Reiceiver, Li-Ion battery, Li-Ion charger, User manual on CD, Quick start guide, Safety instructions, Remote control.
- Model no. 27115000 with receiver ZRB90
- Model no. 27116000 with receiver ZRP105 (picture)
- Model no. 27117000 with receiver ZRD105
- Model. no 27121000 with receiver ZDR105B
