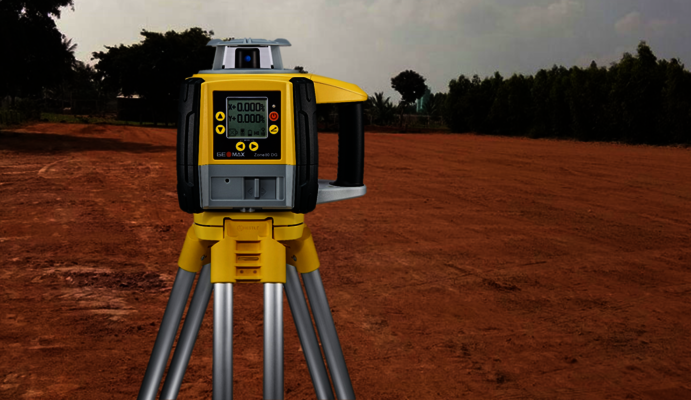

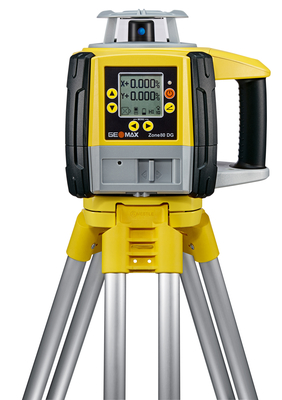

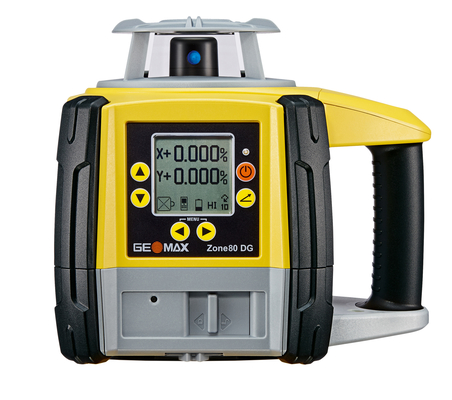

GEOMAX Zone80 DG
Description
High-End-Rotating Laser
- The Zone80 DG rotary laser is the first choice when it comes to long distances where high accuracy and reliability is required - not only in construction, but also in agriculture.
- The focus of the Zone80 DG is on long distance applications and machine guidance, as it operates at different rotation speeds up to 20 revolutions per second (RPM).
- With Beam Catching (only with ZRD105B receiver), the Zone80 DG moves to the desired tilt position, displays the tilt found, and begins self-leveling to maintain the tilt. The receiver's Beam Lock feature monitors the laser beam so that an alarm is triggered when movement is detected. Both functions are also available with the rotary laser in vertical position.
- The rotation laser works fully automatically and allows you to perform your leveling tasks simply and accurately. For optimal tillage, the Zone80 DG provides horizontal plane application settings and up to 15 percent tilt in both axes.
Applications
Application benefits
- Laser class 1
- Rotation speed up to 1200 rpm
- Digital display of the inclination also on the remote control
- Beam Catching and Beam Lock (with ZRD105B)
Specifications
Specifications
Tolerance
±0.5mm to 10m
Working area with receiver
Ø 1100m
Laser diode
visible 635 nm (red), class 1
Self-levelling range
±6°
Temperature range
-20°C to +50°C
Power supply
Lithium-Ion (Li-Ion-Pack rechargeable)
Grade
up to 15% in one axis up to 3% of the transverse axis, 10% for both axes simultaneously
Operating time
> 40 hours
Dimensions
240 x 215 x 215mm
Weight with battery
3,400g
Protection class
IP67
Tilt warning
yes
Accessories
Scope of delivery:
Zone80 DG, carrying case, Li-Ion battery with charger, manual on CD, quick start guide, safety instructions.
- Optional riflescope item no. G739870
- Optional remote control ZRC60 item no. G835245
- Optional GeoMax Receiver ZRB90, ZRP105, ZRD105, ZRD105B, MR240, MR360
