Product
GeoMax Zoom90
Description
Motorized total station for construction, surveying and more

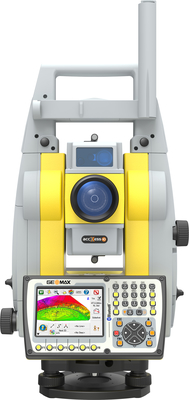

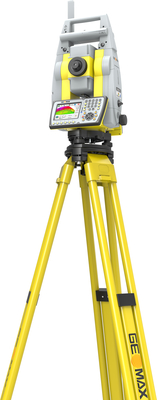

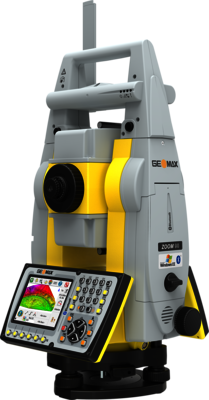

- The GeoMax Zoom90 is a professional, motorized total station with automatic 360° prism search, continuous target tracking and automatic fine pointing for fast and precise working.

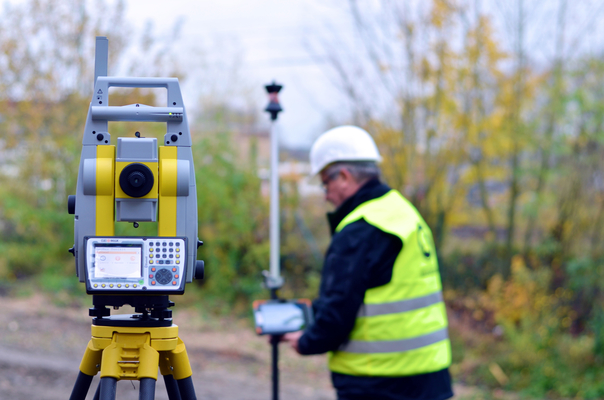

- The 100% robotic one-man Total Station Zoom90 met each of your requirements.

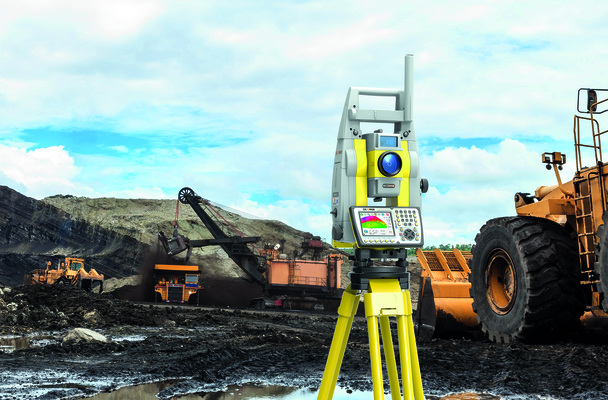

- The Zoom90 series is ideal for terrain and volume recordings and complex set out, it is the right choice for surveyors, contractors, engineers and GIS specialists.
- In combination with the GeoMax field software X-PAD (Android or WinMobile) and a Handheld computer (for example, Panasonic Toughbook) the ideal solution for all your measurement tasks.
- individually: Robotic (R) or servo (S), 3 angular accuracy classes, reflectorless 500 m or 1000 m, internal or long-range Bluetooth. Let us for advice.
See for more information: https://geomax-positioning.com/en-in/products/total-stations
Applications
Applications
- Robust, dust and waterproof design
- Backlit touch control panel with 35 keys
- Automatic prism search 360°, target tracking, fine pointing (STReAM360)
- Open Connectivity (MicroSurvey®, Carlson®, X-PAD, Windows CE ®)
- Red and green guidelight (NavLightTM)
- Laser plummet
Specifications
Specifications
Protection class
IP55, 95 % non-condensing
Range reflectorless / prism
up to 1,000m / up to 3,500m
Accuracy reflectorless
2mm + 2ppm
Accuracy prism
1.0mm + 1.5ppm
Precision angle measurement
1'' (0.3mgon), 2'' (0.6mgon), 5'' (1.5mgon)
Temperature range
-20°C to +50°C
Battery
7-10 hours per battery, Li-Ion 4.4 Ah / 7.4V
Weight
5,000g - 5,300g (without battery and tribrach)
Connectors
Serial, USB, internal Bluetooth, Long-range Bluetooth, external power
Memory
1GB internal, SD Card, USB
Accessories
Scope of delivery
GeoMax Zoom90, battery with charger and power supply, case, manual, tripod, tool kit, rain cover, USB cable, SD card
