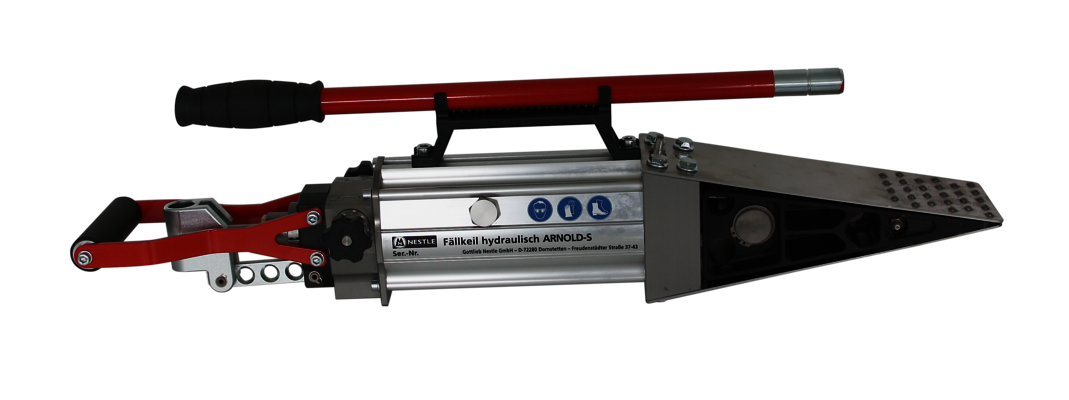

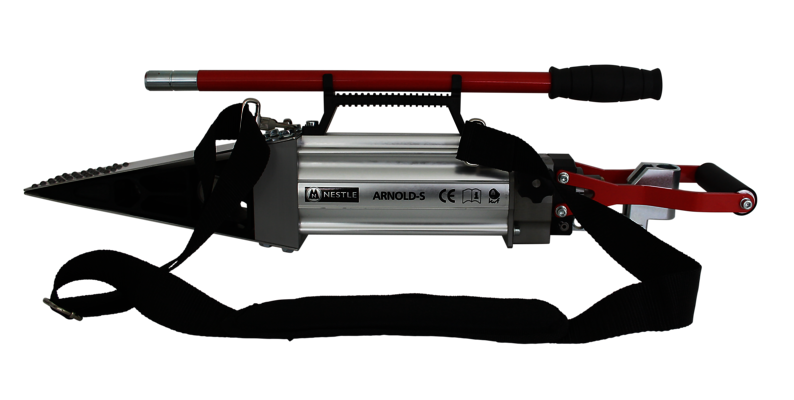

NESTLE Hydraulic felling wedge – Arnold-S
Description
Hydraulic Felling Wedge
- The Felling Wedge Arnold-S is a hydraulic felling wedge.
- It is used as an alternative to heavy wedge work in the strong-wood harvesting.
- The hydraulic wedge allows vibration-free wedging – thus the risk of falling deadwood is significantly lower.
- The wedge can be moved forward and backward.
- The pump unit can be rotated 360 ° steplessly, so the felling wedge can be operated particularly ergonomically.
Applications
Applications
- Stepless and vibration-free wedging
- Pump unit can be rotated 360 °
- moving the wedge forwards and backwards
- 100% Made in Germany
Specifications
Specifications
Weight
9,900g
Working temperature
-25°C to +60°C
Dimension
758x130x180mm
Wedge angle
19°
Spring steel plates
290x90x2mm
Amount of oil
650ml, Oil HEES 22 Bio
Grease nipple
1
KWF prove
Yes
Lifting height
145mm
Lift per pump stroke
>2mm
Lifting capacity
28,5t at 690N
Accessories
Scope of delivery
Hydraulic felling wedge Arnold-S, pump rod, carrying strap, oil filled, instructions
