Product
NESTLE Carbon GNSS pole, PT-9
Description
Carbon-GNSS-Stab PT-9 for all GNSS application - especially short transport length

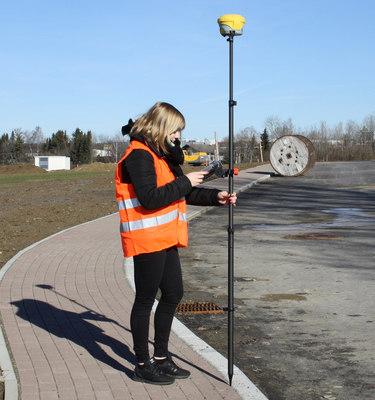

- The carbon GNSS PT-9 pole has a working height of two meters and a double telescoping means a transport length of only one meter.
- The working height of two meters is achieved by the inner tube is extended to grid position and the head tube to the stop with height control mark.
- With two closures, the pole can be moved in and out easily and quickly.

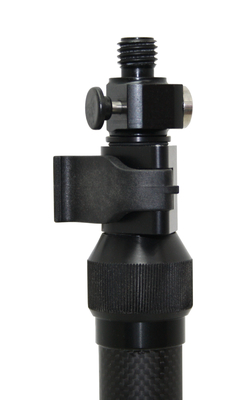

- The GNSS antenna can be quickly and safely separated from the rod with the quick-out adapter Qo-9 (inclusive), so a particularly flexible and fast working is possible.
Applications
Application
- Carbon for pleasant work, even at low temperatures.
- Quick-out for antenna with 5/8".

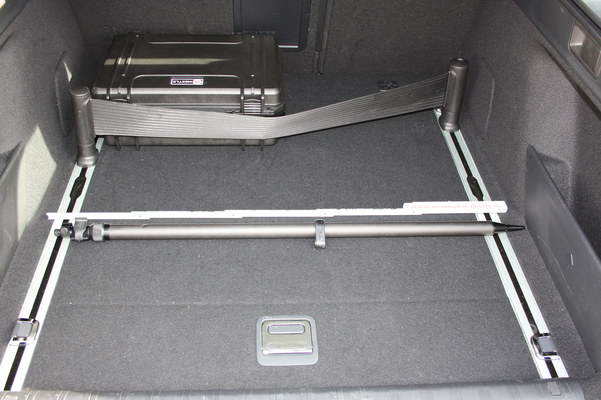

- Especially short transport length
Specifications
Specifications
Clamping
1 x quick clamping, 1 x screw clamp
Vial
20‘
Diameter
Outer tube 32mm, inner tube 25mm, head tube 20mm
Working range, max.
2m
Transportation length
1m
Weight
700g
Connection
5/8” with Quick-out Qo-9
Special Feature
Carbon, Quick-out, short transport length
Accessories
Feature
- Quick-out Adapter Qo-9 single – Model no. 14978000.
- Please also note our two-part and telescopic antenna poles.
