Product
NESTLE Wooden tripod, heavy duty
Description

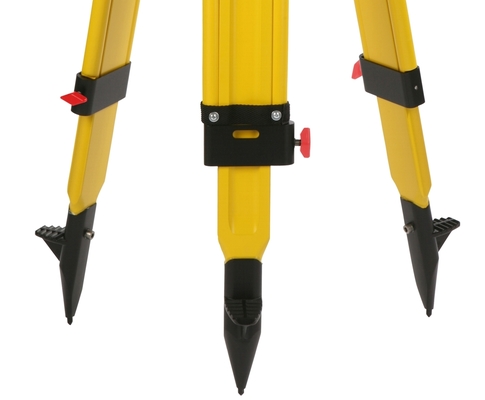

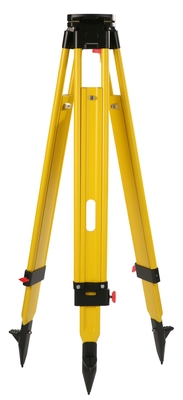

Wooden tripod for high-precision total stations and lasers
- The tripod is made of lacquered, high-quality wood.
- A special processing with oil protects the wood from humidity and water.
- Wooden tripods show excellent damping qualities. In comparison to aluminium-made tripods shocks and vibrations on the jobsite get much better absorbed. This enhances measurement accuracy.
- Exposed to bright sunlight wood proves to have much less expansion than metal-made items. This also adds to the quality and reliability of any survey work -no matter what weather conditions you have to cope with.
- Especially when working with high-precision instruments – like total stations or theodolites -using a quality wooden tripod is absolutely recommended.
- The handling is as simple and convenient as it is with aluminium tripods. The legs extend without jamming which prevents the tripod from wear. Nonetheless – the clamping system works absolutely reliable.
Applications
Applications

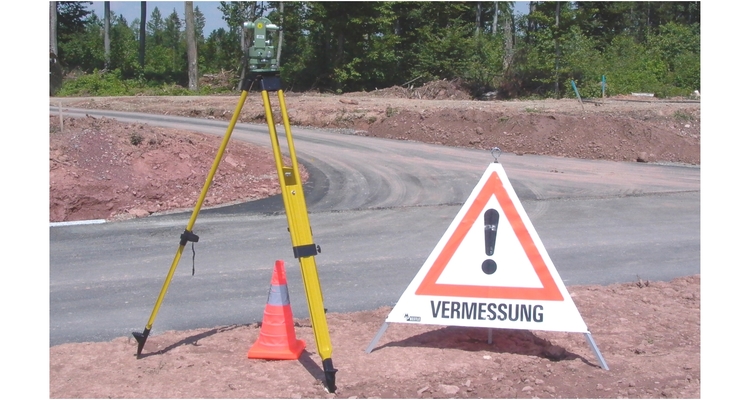

- Using a NESTLE wooden tripod is ideal for high-class levels, lasers, theodolites and robotic total stations.
- The special wood processing prevents water diffusion – the tripod stays ready for use over many years.
Specifications
Specifications

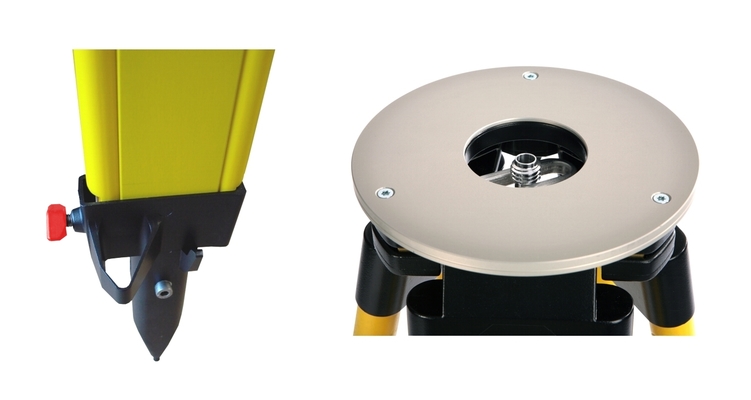

Head
Flat, metal
Working range, 1m distance of tips
90-170cm
Transport length
107cm
Clamping
Clamp screw
Weight
6,200g
Thread connection
5/8"
Accessories
Accessories
The heavy wooden tripod is available in four versions:
- Basic version, model no. 13702000.
- Basic version, self-locking, model no. 13704000.
- With circular head plate, 168mm, model no. 13703000.
- With circular head plate, 168mm, self-locking, model no. 13705000.
- Available on request: Carrying strap for wooden tripods, model no. 13920000.
- Head protect cover available for models 13702000 and 13704000 model no. 13919000.
- Head protect cover available for models 13703000 and 13705000 model no. 13927000.
