NESTLE Carbon Tripod CT-01
Description
NESTLE Carbon Tripod CT-01
- The NESTLE carbon tripod CT-01 is particularly suitable for working with terrestrial 3D laser scanners.

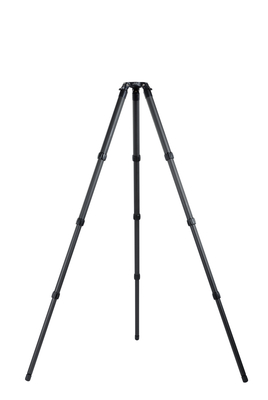

- By the 4-fold extendable tripod legs it can be quickly and flexibly extended to the desired height.
- The tripod legs are locked fast with high accuracy by collet clamps.
- The adjustable expansion stop prevents unintentional slip of legs on smooth floors.
- Legs made of high-quality, semi-matt carbon fibre.

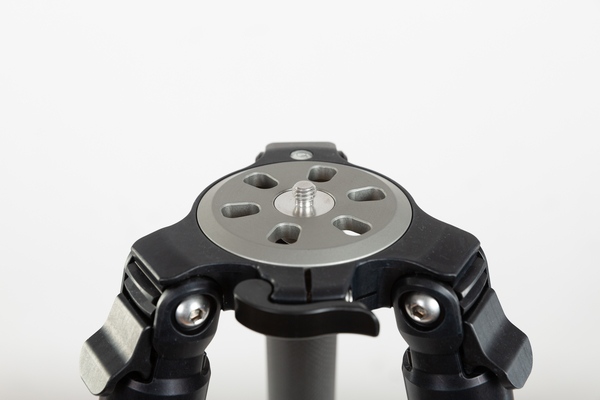

- Lateral mounted head-adapter-lock for collision-free fastening.
- All Instrument adapter exchangeable without tools.
Applications
Applications
- 4-fold extendable legs
- Adjustable expansion stops
- Include interchangeable adapter for 3/8" + 5/8"
- Headstock lock collision-free
- Low weight, only 2,180g
Specifications
Specifications
Working range
12.5cm to 153cm
Transport length
58cm
Connection included

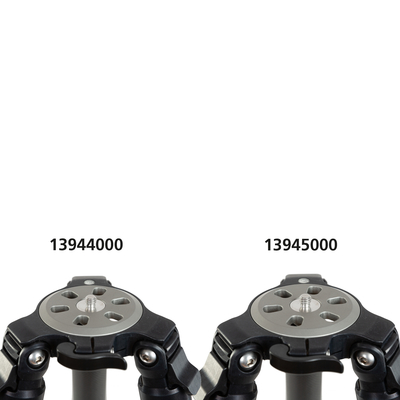

Adapter 3/8" model no. 13944000
Adapter 5/8" model no. 13945000
Connection optional
Adapter 1/4" model no. 13943000
Adapter P'IN DN 16mm model no. 13946000
Clamping
Union nut with collet clamping
Vial
circular vial
Working load
24kg
Weight
2,180g
Application
for terrestrial 3D laser scanners
