Product

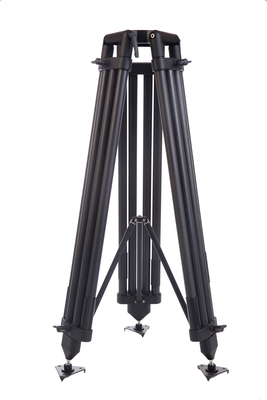

NESTLE Carbon tripod HDX
Description

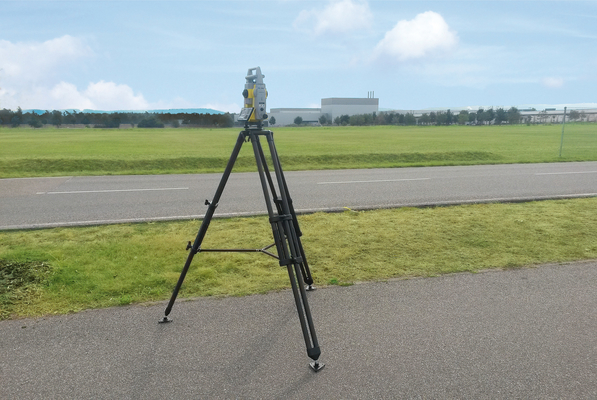

For precision and industrial surveying
- Nestle Carbon Tripod HDX, classic black for precision and industrial surveying.

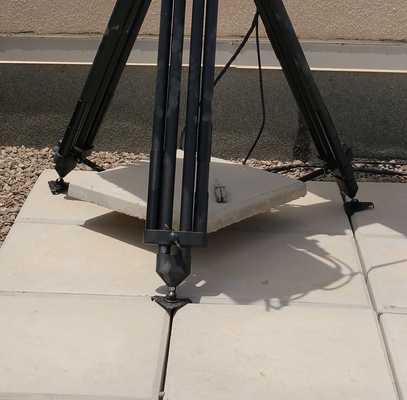

- The tripod is equipped with a center brace. The triangular panels on the tripod legs are freely movable and equipped with spikes to prevent slipping.
- The tripod is tested for instruments weighing 100 kg.
- The tripod legs are locked for uniform load distribution via two clamping screws. The additional head screw allows torques free working of the tripod head.
- Carbon has a better coefficient of thermal expansion as Invar, characterized the tripod HDX, classic black is suitable for any measurements with highest precision requirements.
Applications
Applications
- Double clamp on the legs

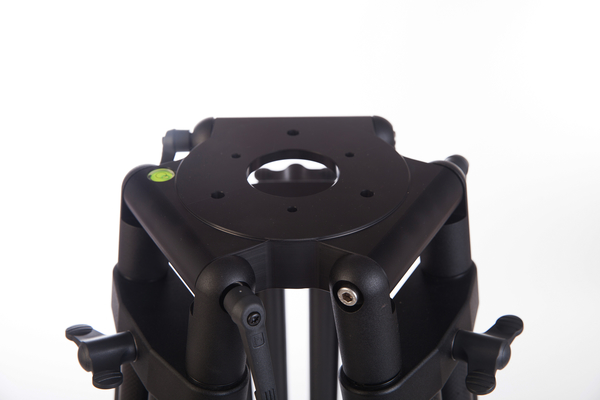

- Head clamping screw for torque relieve of the tripod plate
- center brace
- Lightweight and robust for maximum precision
- Tested for instruments up to 100 kg
Specifications
Specifications
Best application
Precision and Engineering Surveying
Working range 1m distance of tips
97cm to 160cm
Transport
L: 107cm D: 30cm
Thread connection
5/8''
Weight
8,960g
Special features
Carbon, double clamping, center strut, torque relief screw
Accessories
Accessories
- Head with circular vial.
- Optional with crank or video head possible.
