Description
Heavy aluminium version, self-impeding
- These elevating tripods are suitable for heavy rotating lasers.

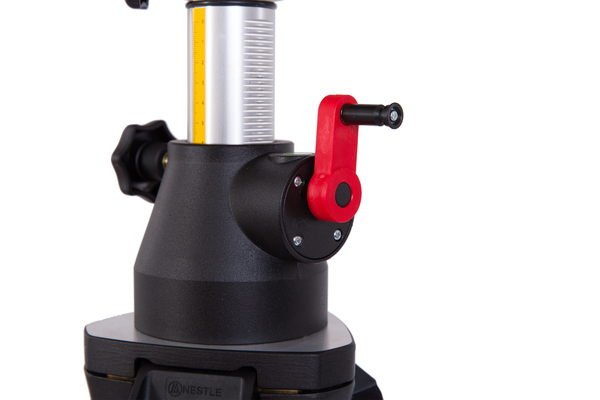

- With the gear reduction (0,7cm crank elevation / revolution) a specific height can be approached easily. Even when burdened with heavy laser devices, the 35cm crank can be moved without effort.

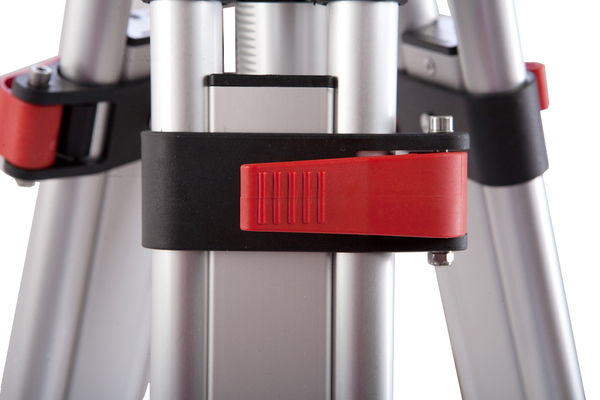

- Models 13501000 and 13502000 have a double side clamping for maximum clamping force. This patented system works directly in the direction of force. This provides for maximum stability especially at large heights.

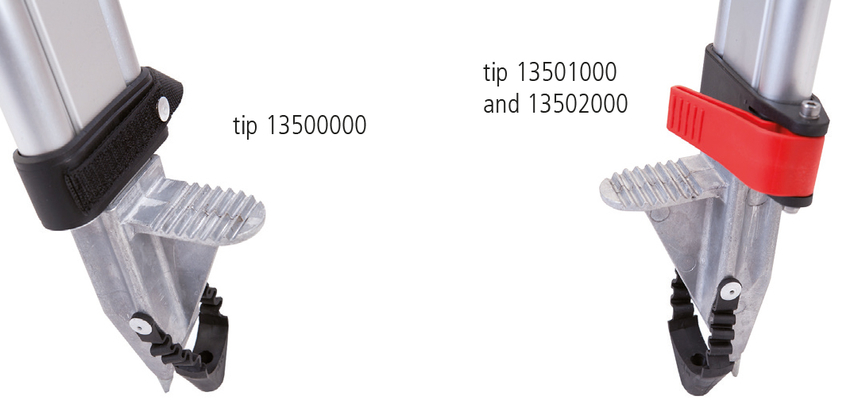

- When required, the tripod legs tips can be covered with rubber caps. This ensures safe positioning on smooth ground and prevents damages of surfaces like parquet flooring and paving tiles.
- We only use high-quality aluminium for the tubes and profiles. The anodized aluminium parts are weather-proof for toughest use.
- The aluminium tubes slide without jamming. This prevents the material from wear and keeps the tripod ready for use over a long period of time.
- The plastic parts are made of polymer-fibreglass composite and are extremely robust. These quality characteristics make NESTLE tripods the superior choice in comparison to competitive products.
- Solid tips.

Applications

Applications
- The heavy self-impeding elevator allows Millimeter by Millimeter aproaching the height. Even with heavy laser devices.
- Superior useability.
- Best materials and quality workmanship keep the tripod ready for years of toughest use.
Specifications
Specifications

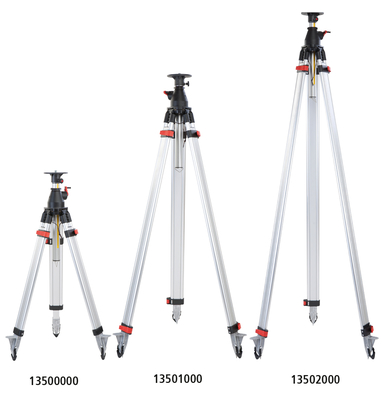

Model no. 13500000
Transport size: 109cm
Working range,1m distance of tips
90-188cm
Weight
5,400g
Model no. 13501000
Transport size: 161cm
Working range,1m distance of tips
150–295cm
Weight
6,900g
Model no. 13502000
Transport size: 209cm
Working range,1m distance of tips
200-391cm
Weight
8,100g
Crank / Thread conn. all models
35cm / 5/8"

Accessories

Feature
- All models feature side clamping.
- Double side clamping for models 13501000 and 13502000.
