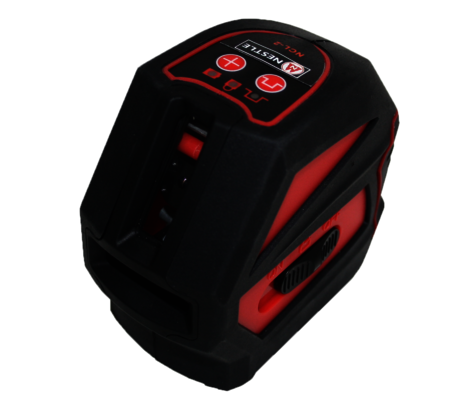

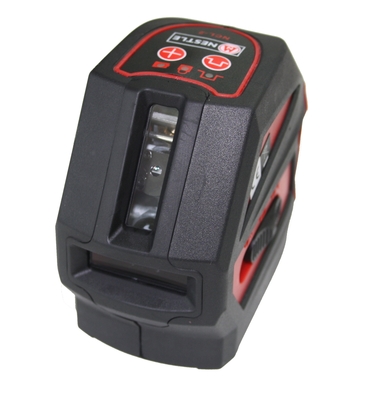

NESTLE Line laser NCL-2
Description
Line laser for indoor working
- Set up and start work! The NESTLE NCL-2 has an integrated pendulum compensator which does the fine adjust by itself.
- An outstandingly visible laser line. You could use a receiver for longer distances – switch into the pulse mode.

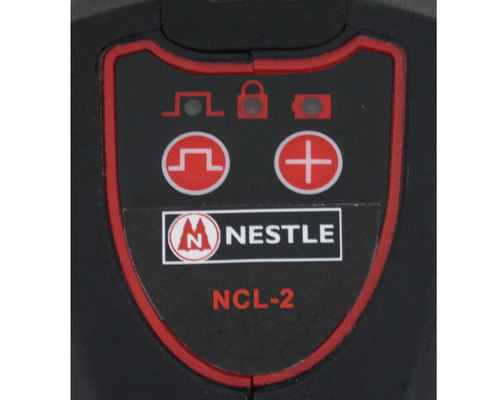

- No operating errors – clearly arranged control panel.
- It is possible to fix the horizontal and vertical laser lines to operate in every position.
- Low-bat indicator starts blinking when battery voltage under <3 Volt.
- The NESTLE NCL-2 is a small sized instrument for nearly every indoor work.
- The laser has a 1/4″ thread to mount a tripod. This makes the laser more flexible in its application.
- An acoustical alarm signal sounds out, if the laser cannot do the fine adjusting.
- Horizonatal and vertical laser line – angle of reflected beam 120°.

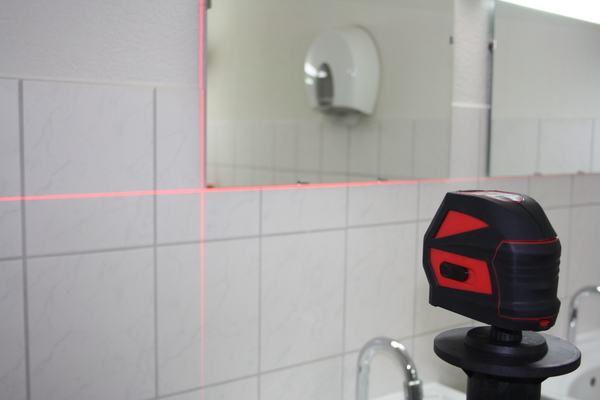

Applications
Applications
- The NESTLE NCL-2 is protected by a solid casing with rubber coating for more safety at construction.
- Solid construction of the NCL-2 ist ideal for the rugged daily use.
- Simple handling to be fast and precision.
Specifications
Specifications
Tolerance horizontal line
± 3mm to 10m
Tolerance vertical line
± 2.5mm to 10m
Self-levelling zone
4° ± 0.5°
Operating area / with receiver
20m / 50m with receiver
Operating time
<8 hours
Laser
635nm visible, class 2
Storage temperature
-20°C to +60°C
Dimensions
119 x 62 x 95mm
Weight
480g
Thread
1/4"
Operational area
interior
Accessories
Accessoires
Delivery includes:
- NESTLE NCL-2, 3 x AA batteries and bag.

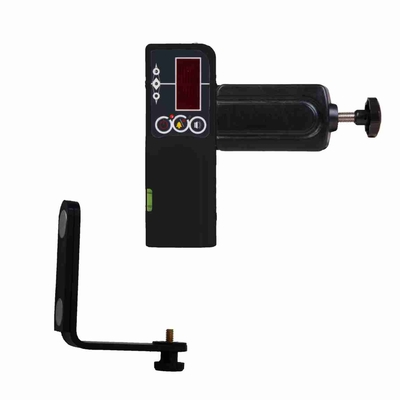

Optional available by NESTLE:
- Magnet Support, Model no. 21133000.
- Receiver Decto, Model no. 16814000.
