Product
NESTLE precision measuring wheels
Description
Measuring wheel – precision models
- NESTLE precision measuring wheels for exact measurements.

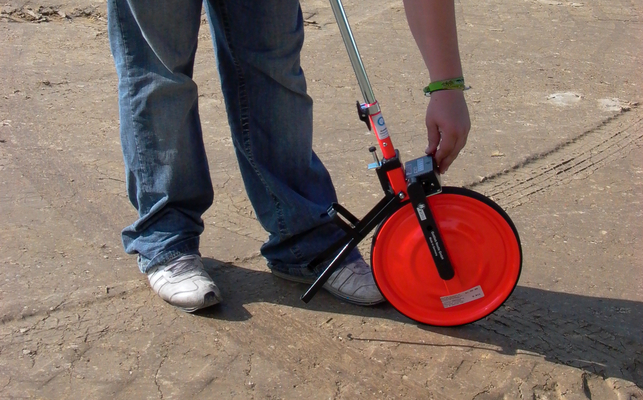

- Ideal for distance measurements on construction sites and roadworks.
- Also suitable for accident investigations.
- Quality counter “Made in Germany” mounted directly above the wheel, easy to read while handling the wheel.
- The counter also works decremental, which makes subtractions possible.
- Zero-set lever attached to the counter for quick resets.
- Solid and large stand, easy to fold out.
- Integrated brake prevents from unintentional changes of the measuring result.
- Foldable handle for space-saving transport.
- Solid full wheel or spoke wheel respectively, made of aluminium die cast metal keeps the measuring wheel firmly on the track.
- The rubber is ground to exactly 318.5mm diameter.
- The wheel`s framework is robot-welded and guarantees for lasting quality and durability.
- Also available as spoke wheel version on request.
Applications
Applications
- Easy handling – top precision
- Quality workmanship and manufacturing keep our measuring wheels ready for toughest use over many years.
- As a certificate of quality, a sticker on the wheel indicates the deviation from the correct circumference. A NESTLE exclusive feature!
Specifications
Specifications
Wheel

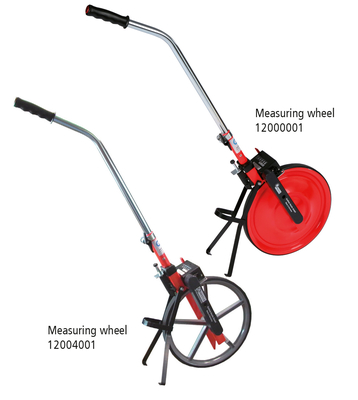

Model no. 12000001: Full disc wheel
Model no. 12004001: Spoke wheel
Measuring range
9,999.99 m, cm reading
Wheel diameter
318.5 mm
Wheel circumference
1m
Accuracy
<0,02%
Weight
Model no. 12000001: 4,100g
Model no. 12004001: 3,500g
Colour
Fluorescent colour red
Calibratable
Yes
Accessories
Accessories

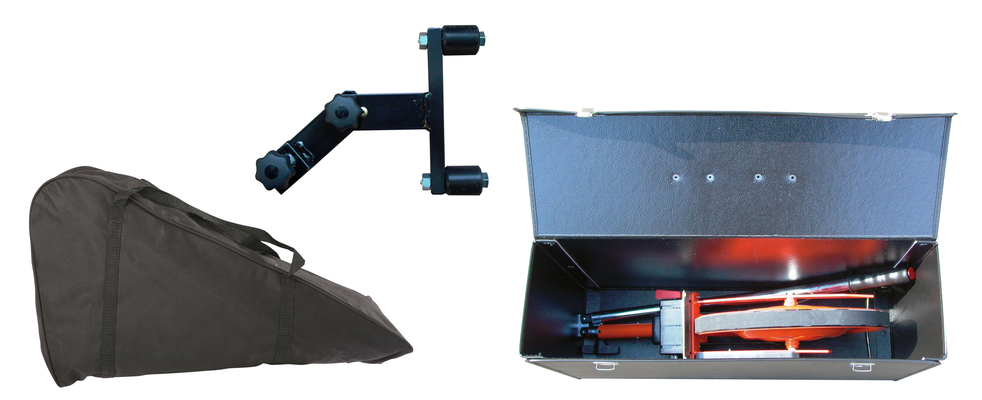

As accessories for our measuring wheels we offer:
- Special support for rail measurement – the wheel is kept safely on the track. model no. 12902000.
- Carrying case, artificial leather covering, model no. 12900000.
- Carrying bag, model no. 12901000.
