NESTLE Prism pole PC-4
Description

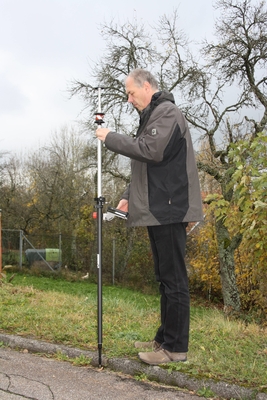

Prism pole for Construction
- Prism pole with carbon outer tube for construction surveying.
- The twist lock allows easy and safe telescoping and tightening. The inner tube can be locked at several positions with a locking pin.
- With 5/8″ thread for use with prisms with 50.2mm tilting axis height, for example prism MPR122 360° model no. 25100000.
- The prism pole PC-4 has two screw able tips: standard tip and sanding tip.

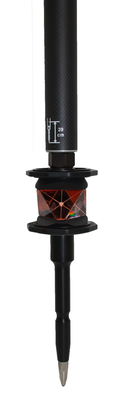

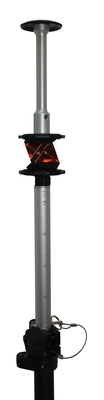

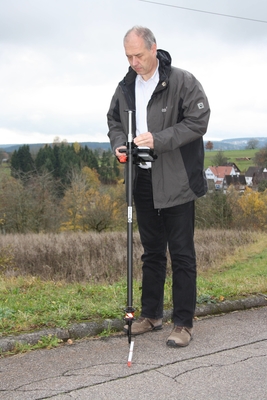

- Fine stakeout work is easier if the prism is close to the ground. For this purpose, the prism pole PC-4 can also be used upside down. When used head-on, the prism (MPR122) has a height of 20cm, no matter which original tip is used.
- For turning operation, the PC-4 rod has two circular vial.
- With outer scale in the foot area up to 75cm. On the outside scale, the sinking depth of the pole can be read quickly when measuring in soft ground and be corrected accordingly.
- Optional center punch tip for PC-4 model no. 14973000. This centering punch tip for PC-4 makes marking easier on concrete, metal or wood.
Applications
Applications
- Carbon outer tube
- Sand plate and standard tip
- Head over use for fine stakeout work
- Outside scale in foot area up to 75cm
Specifications
Specifications
Clamping
Screw clamping and locking pin
Working range
120cm-205cm, and 20cm
Graduation
cm
Dimensions
Outer tube 32mm, inner tube 25mm
Weight
980g
Connection
2 x 5/8''
Special Feature
Upside down use, sand plate, outside scale in foot area
Accessories
Accessories
- Prism MPR122, model no. 25100000
- Center punch tip for PC-4, model no. 14973000
