NESTLE Prism adaptors
Description

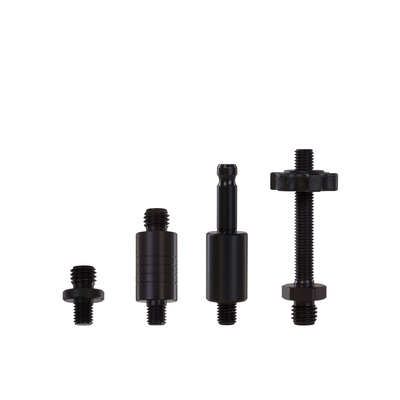

Adaptors for NESTLE prism poles
- Model no. 14920000 from Leica spigot to 5/8″
- Model no. 14921000 5/8″ internal thread to Wild / Leica connection
- Model no. 14922000 Leica-Mini-Prism 1/4″ x 20
- Model no. 14923000 5/8″ female to M12 male
- Model no. 14924000 Leica spigot e.g. GPH1, tilt axis 100mm
- Model no. 14925000 Zeiss KTR1N, OMNI 1200/9125, tilt axis 100mm
- Model no. 14926000 Glunz GPH1150/1160, OMNI 1225, tilt axis 115mm
- Model no. 14927000 Nikon, tilt axis 110mm
- Model no. 14928000 Sokkia Pyramid, tilt axis 82mm
- Model no. 14929000 Sokkia AP-series, tilt axis 97mm
- Model no. 14930000 TOPCON 5010, tilt axis 78mm
- Model no. 14931000 TOPCON, tilt axis 125mm
- Model no. 14932000 5/8″ for Geodimeter-prism 600
- Model no. 14933000 Universal adaptor M12 to 5/8″, adjustable
- Model no. 14934000 GNSS-ARP-Adaptor 14cm for all poles
- Model no. 14935000 GNSS-adaptor for NESTLE poles with model no. 14009000
- Model no. 14955000 Leica MPR122 adaptor for NESTLE midi-pole model no. 14002000
- Model no. 14919000 Pole topo shoe, screwable, for pole 1413000 and 14008000
Applications
Applications

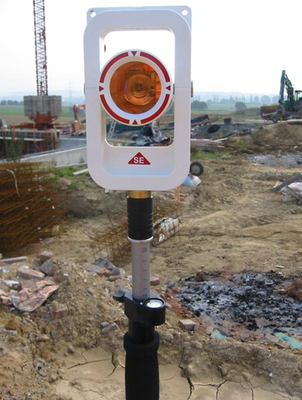

By the adaptor adjust the tilting axis of the prism to the Scala of the pole.
Your NESTLE-pole is thus with all standard prisms be used.
When placing an order of a pole then send your prism type, one matching adaptor is included in the delivery.
Specifications
Specifications
Pole adaptor
Weight
Depending on the type about 200g
Pole topo shoe
Model no. 14919000
Stand base
∅ 65mm
Weight
130 g
Tip with screwable topo shoe
Model no. 14956000
Shoe
∅ 60mm
Weight
95g
Accessories
Accessories

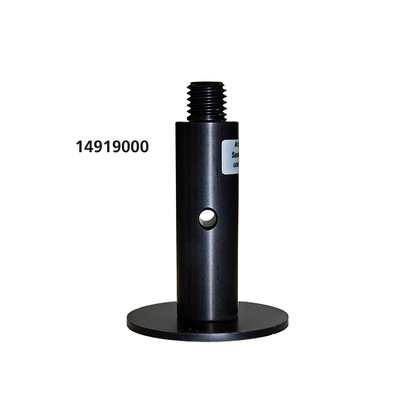

Pole topo shoe, model no. 14919000
- Prevents the sinking of the tip in soft ground.
- This gives more accuracy to the all point heights.

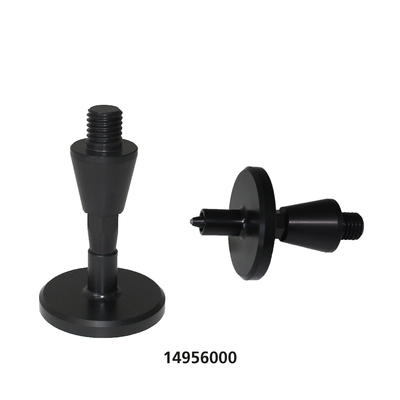

Tip with screwable topo shoe, model no. 14956000
- Can be used for all carbon poles with removable tip.
- Advatage: Sand plate is always there, without being lost.
