NESTLE Scan sphere
Description
Reference sphere for laser scanning
- The NESTLE scan sphere is a reference for all scanning work.
- Perfect to put together several scans.
- The spherical shape allows an optimum capture from all directions and has proved itself as a laserscanning-target.
- The scan sphere is made of plastic with a mat textured paint specifically for optimum reflection properties.

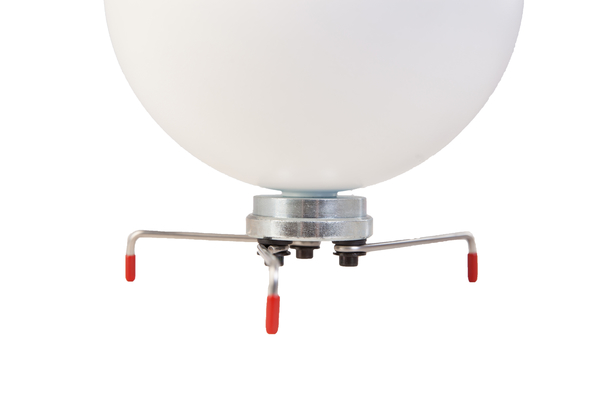

- Inclusive removable magnetic base (thread M8)
Applications
Applications
- Washable.
- Suitably for dishwasher.
- Shock proof.

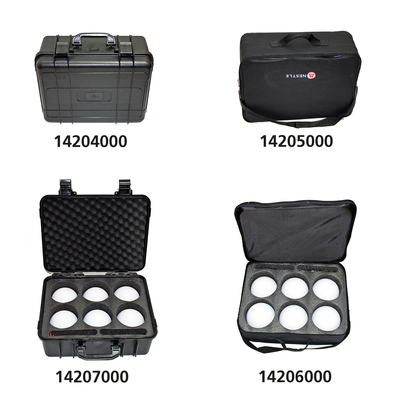

- Scan sphere set, 6 pcs. with magnet and carrying bag, model no. 14206000.
- Scan sphere set, 6 pcs. with magnet and carrying case, model no. 14207000.
Specifications
Specifications
Diameter
Ø 145mm (5.7'')
Weight
250g
Sphericity
0.3mm at 20°C
Accuracy radius
±0.15mm at 20°C
Accessories
Accessories
- Carrying case for 6 scan spheres, model no. 14204000.
- Carrying bag for 6 scan spheres, model no. 14205000.
- Adaptor for scan sphere / NESTLE range pole, model no. 14209000.

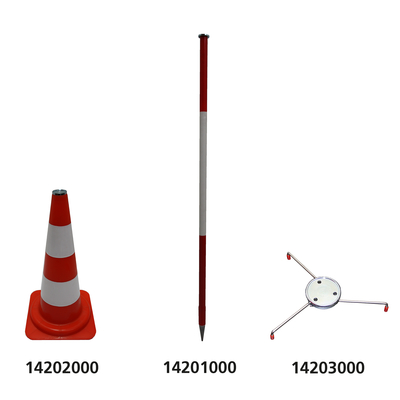

- Pole with metal cap, model no. 14201000.
- Traffic cone with metal plate, model no. 14202000.
- Ranging pole support, model no. 11903000.

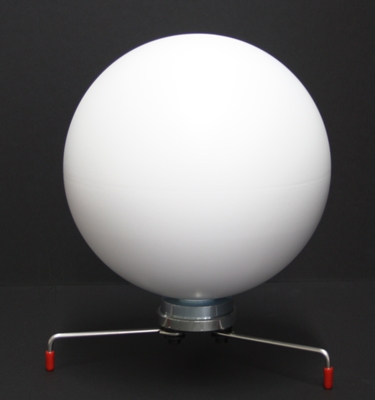

- Mini Tripod, model no. 14203000.
