NESTLE Heavy duty tripods
Description

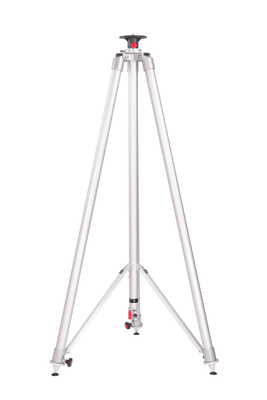

Heavy elevating tripods
- The tripods guarantee stability for lasers at large heights.
- Rugged aluminium construction with central strut section.
- The crank is easy to operate, even with heaviest laser devices.
- Mounting screw 5/8″ (other threads available on request).

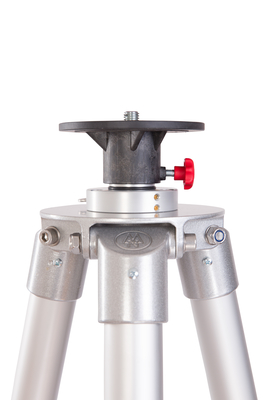

- Detachable top plate Ø 140mm.
- Crank handle undetachable (the screws can´t be removed completely so no parts can get lost on the jobsite).
- Tips made of solid steel, replaceable.
- Including one set of tips with rubber caps to protect damageable surfaces and one set for exterior applications.

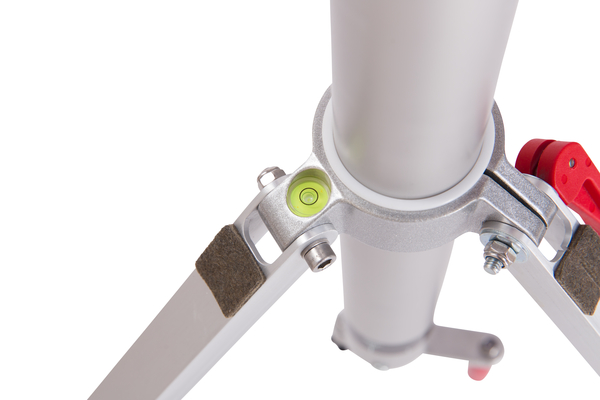

- The circular vial placed besides the central column allows for quick setting up.
- The NESTLE heavy tripod is in accordance with numerical simulation calculation by Ingenieurbüro Dr. Heiser in the virtual-wind-tunnel stable over 90km/h wind speed. The calculation was performed by CFD method (computational fluid dynamic) in full working height and rotary laser on top.
Applications
Applications

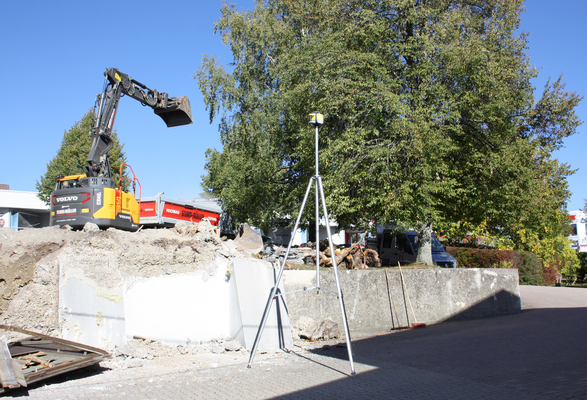

- The tripods guarantees stability for lasers at large heights – even under stormy weather conditions. Ideal for machine control applications.

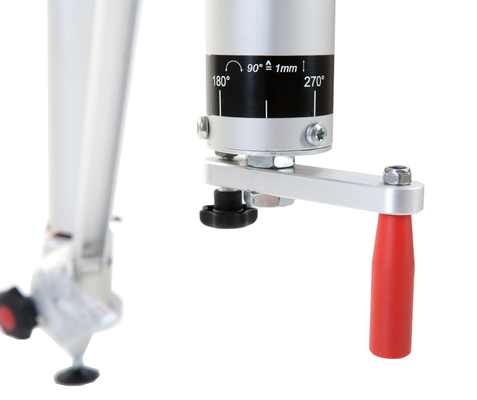

- The crank handle is located directly below the central column and can be operated any time and at any tripod extension height.
- The clamping buttons are placed in the side of the leg and therefore protected from transport damages.
- Ideal balance of weight: The tripod – while being light enough to be operated by one single person - is also solid and heavy enough to withstand wind and stormy weather conditions on the jobsite.
Specifications
Specifications
Model no.
13600000 / 13601000
Height min.
162cm / 212cm
Height max.
360cm / 452cm
Transport size
177cm / 230cm
Base circle
220cm / 300cm
Weight
17kg / 20kg
Crank elevation both models
80cm
Accessories
Accessories

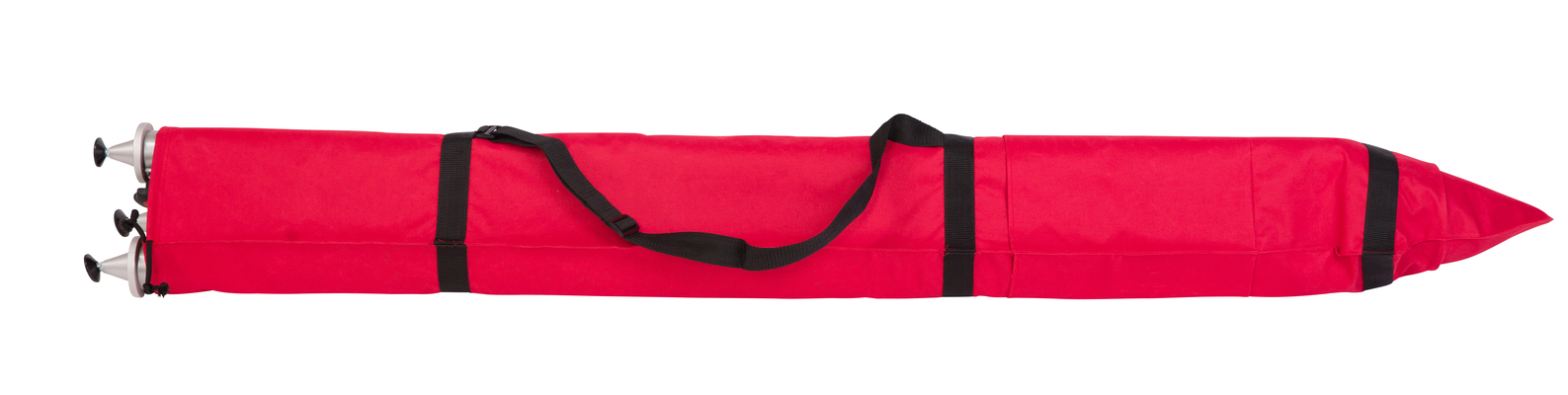

Delivery includes transport bag and 2 sets of tips (with/without rubber caps).
