Product
NESTLE Tripod adaptor + Wall mount
Description

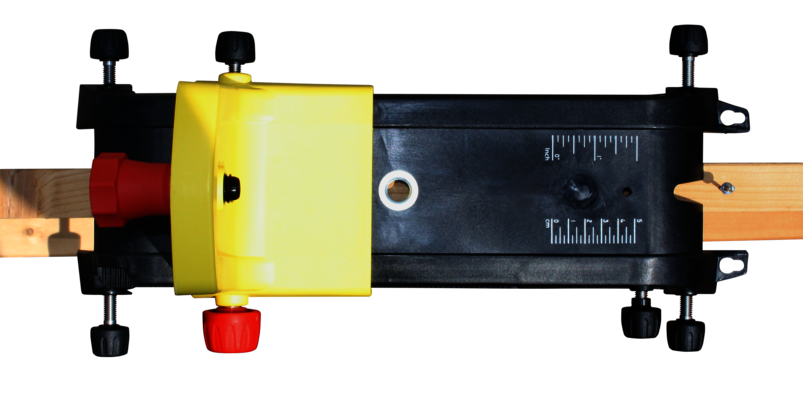

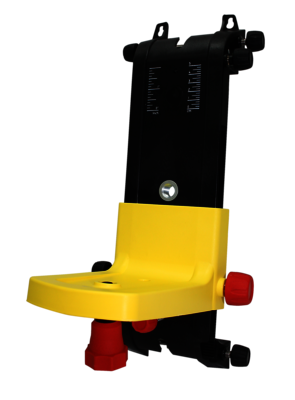

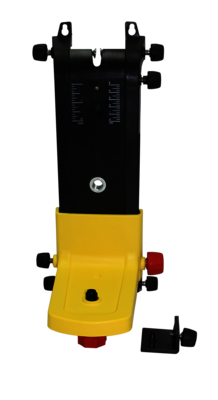

NESTLE Universal Carrier NUT-9G

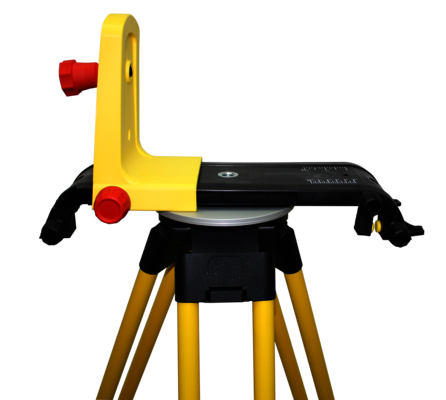

- The NESTLE Universal carrier NUT-9G is used to mount rotary lasers on walls, angle rails, tripods or batter boards.
- With the help of the adjusting screw an instrument can be moved exactly and simply on the universal carrier.
- The maximum stroke adjustment is 18 cm, each horizontal or vertical.
- A measuring scale in cm and inch supports the exact alignment of the instrument on the slide.
- With the included L-bend 90 °, GeoMax laser receivers (ZRP105, ZRD105x) can be mounted on batter boards for vertical operation.
Applications
Applications
- Multiple use on walls, columns, planks, drywall rails and tripods
- Vertical and horizontal use
Specifications
Specifications
Stroke adjustment
18cm
Load capacity
Rotary laser with housing radius & lt; 10cm
Dimension
42 x 18 x 23cm
Weight
1,400g
Tripod connection
5/8”
Instrument connection
5/8”
Accessories
Scope of delivery
- NESTLE Universal Carrier NUT-9G
- L-Bend 90° for ZRP105, ZRD105x
- Quick start Guide with QR-Code
