Description

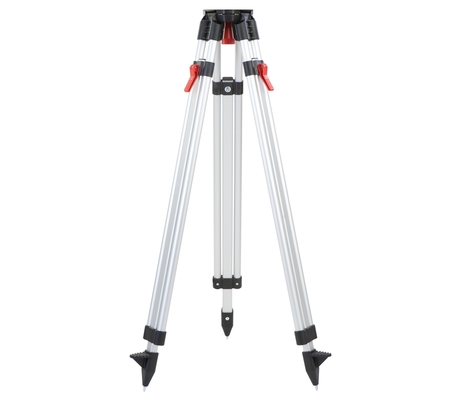

Medium heavy version, standard head plate
- The 13102000 is especially designed for use with levels, light rotating lasers and theodolites.

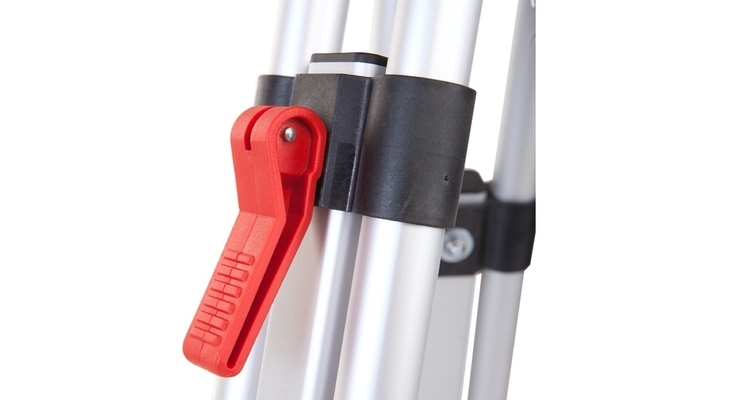

- Quick locking with ergonomically designed excentric clamping levers for easy handling – even with gloves on.
- New patended circumferential clamping system. The clamping force takes effect on the outer and inner profiles. The force is always constant at every grade of extension.
- We only use high-quality aluminium for the tubes and profiles. The anodized aluminium parts are weather-proof for toughest use.
- The aluminium tubes slide without jamming. This prevents the material from wear and keeps the tripod ready for use over a long period of time.

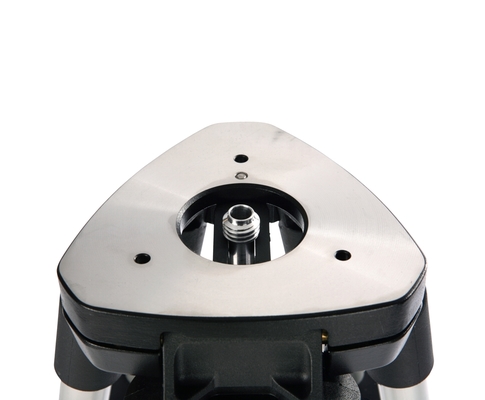

- Tripod head made of metal.
- The central locking screw is movable.
- The plastic parts are made of polymer-fibreglass composite and are extremely robust. These quality characteristics make NESTLE tripods the superior choice in comparison to competitive products.
- Solid tips.

Applications

Applications
- Superior useability.
- Best materials and quality workmanship keep the tripod ready for years of toughest use.
- Also for use with theodolites.
Specifications
Specifications
Head
flat, metal
Working range,1m distance of tips
90 - 170cm
Transport length
106cm
Clamping
Eccentric, circumferential
Weight
3,700g
Thread connection
5/8"

Accessories

Feature
- Also available with domed head version, model no. 13104000.
-

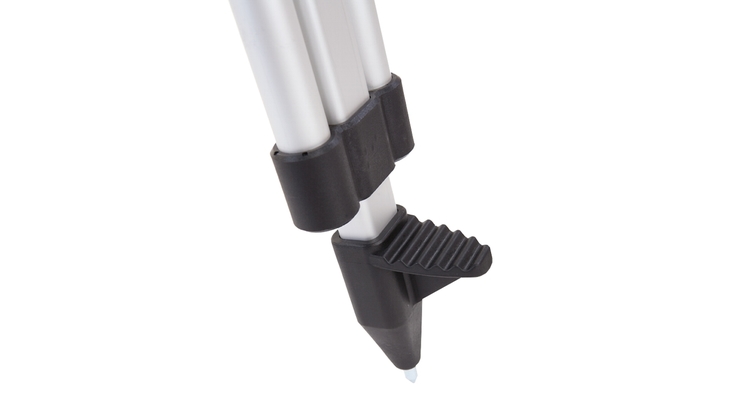

Tip made of polymer-fibreglass composite with metal pin.
