Product

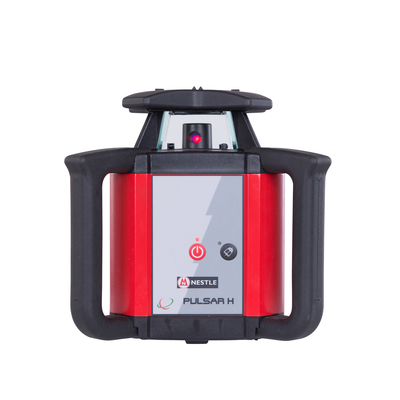

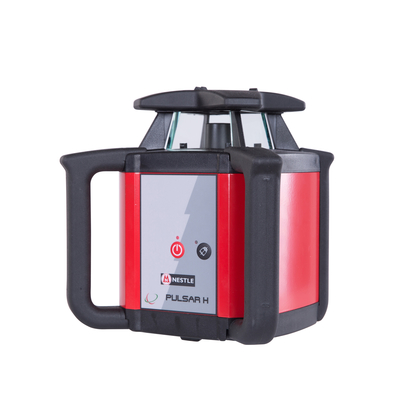

PULSAR H - Type 2
Description
Automatic laser for horizontal applications
- Clear function program for simple application.
- In case of interruption at the tripod, the construction laser switches off
his rotation automatically. If you are working in the TILT mode, the
laser stops and doesn´t level out himself. False measurements are
impossible. - Heavy-walled, massive aluminium casing for toughest use at constructions.
- High quality standard used by NESTLE in converting.
- The assembled laser diode of PULSAR H has a well visible laser beam,
which increases the visibility of indoor working. - A total coverage of 600m.
Applications
Applications
- Install, turn on and start working.
- Complete package with a laser receiver and target plate.

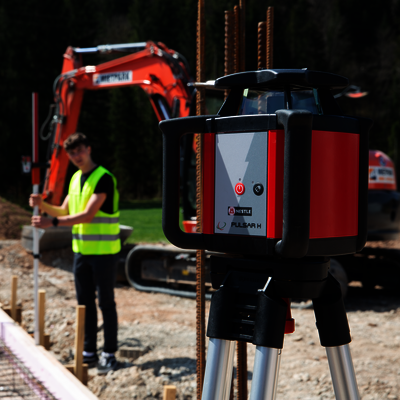

- The laser is qualified for digging and base grade, levelling of form work and basements, landscape and roadworks, height control in construction areas.
-
Receiver PDRG60 with graphic and numerical display.
Specifications
Specifications
Accuracy
±1mm on 10m
Self-levelling zone
±5°
Range with receiver
Ø 600m
Laser diode / beam
635nm, class 2 / red
Operating time
20h
Rotation
600 r.p.m.
Operating temperature
-20°C to +50°C
Weight
3,000g
Dimensions
215 x 190 x 210mm
Protection class
IP65
Accessories

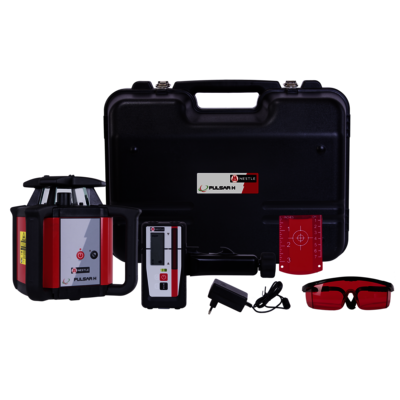

Scope of delivery
- PULSAR H with case and technical manual
- Laser Receiver PDRG60 (Made in Germany) with holder
- Charger
- Target plate
- Laser glasses
